Fits TVs
13" to 42"
VESA Range
75x75mm to 200x200mm
Extension
15.46"
Tilt +5°/-15°
Swivel +/-90°
Weight Capacity
77 lbs

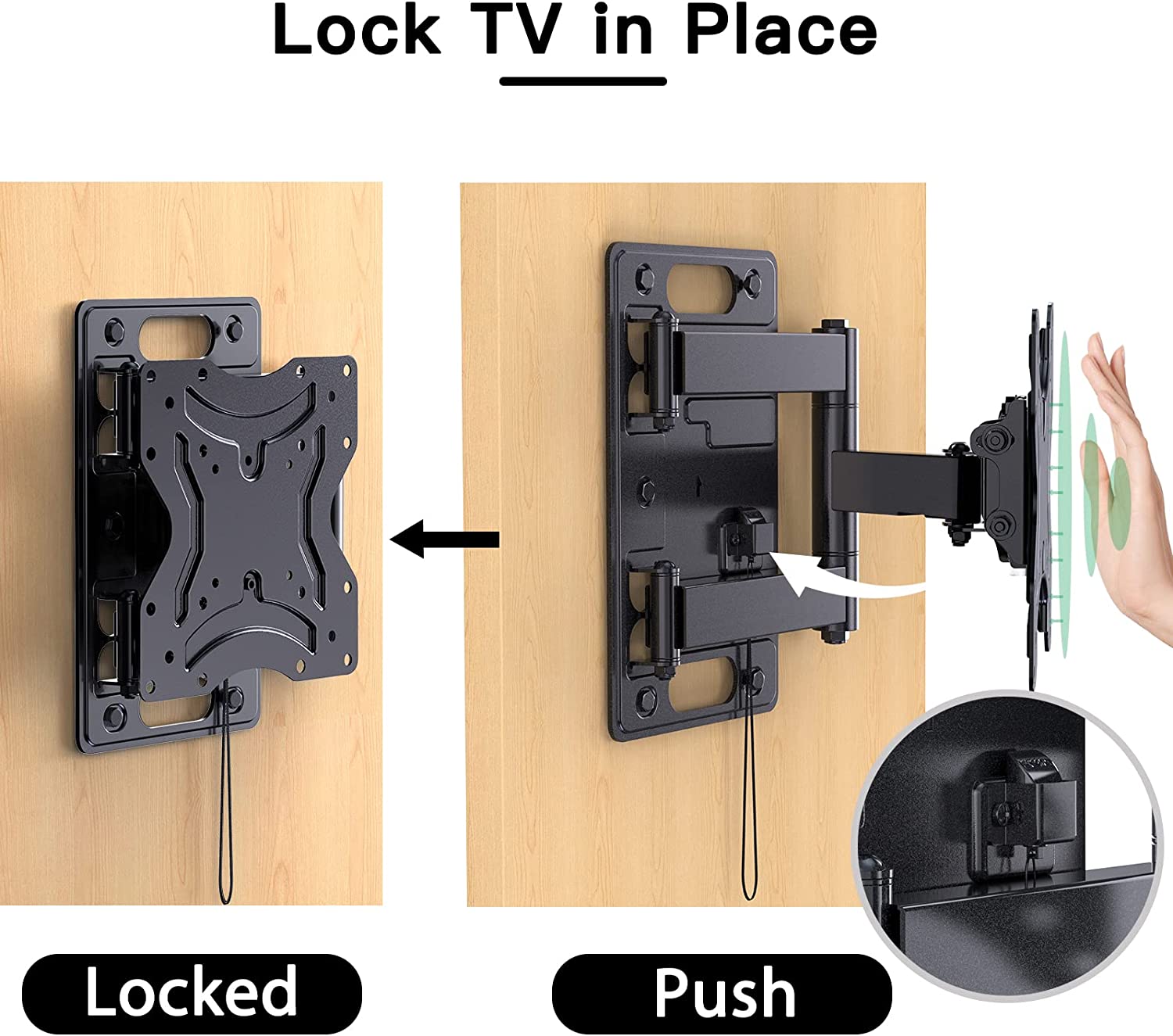

1. PSLRVF features a pull cord locking mechanism to easily release or secure your TV.

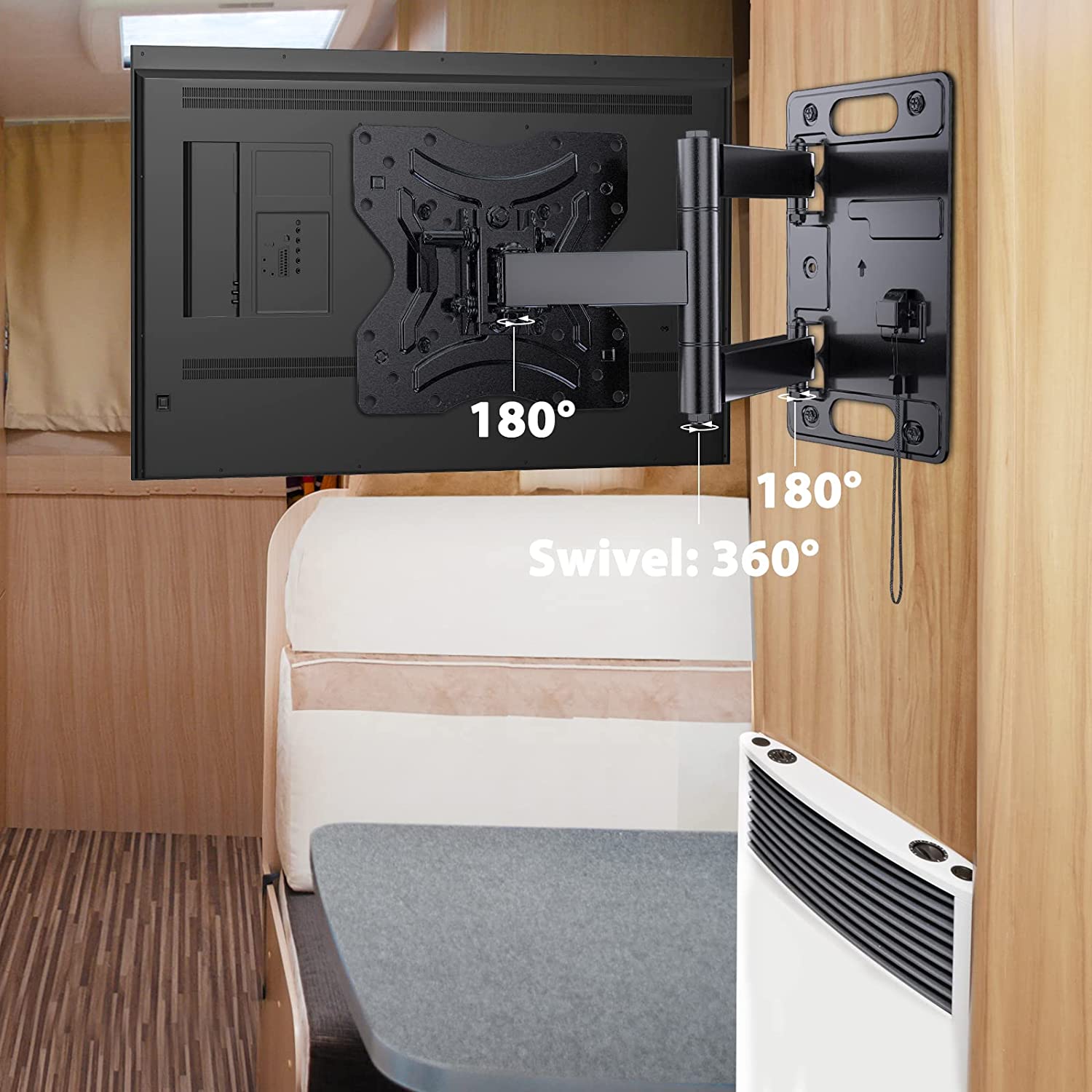

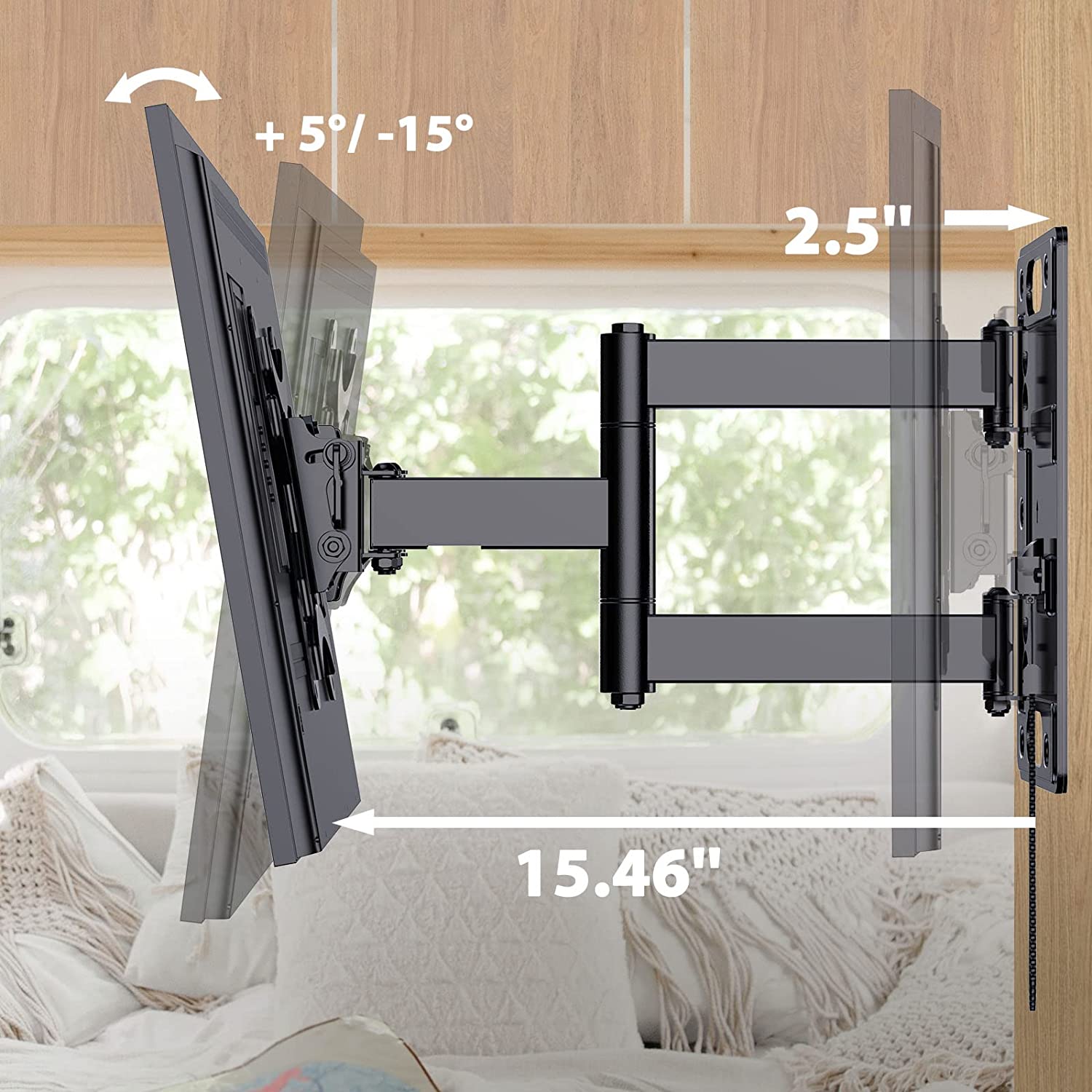

2. Adustments include +5°/-15° tilt, +/-90° swivel (max. swivel angle depends on TV size) and +/-3° leveling after installation.
3. Articulating arm extends from 2.5" to 15.46". Weight capacity 77 lbs.
4. Includes instruction manual and standard mounting hardware.
5. 5-year limited warranty and professional U.S.-based customer support.
Product Compatibility | |
Brand | Perlesmith |
Model Number | PSLRVF |
Type | Full Motion |
TV Size Range | 13" to 42" |
Maximum TV Weight | 77 lbs (35 kg) |

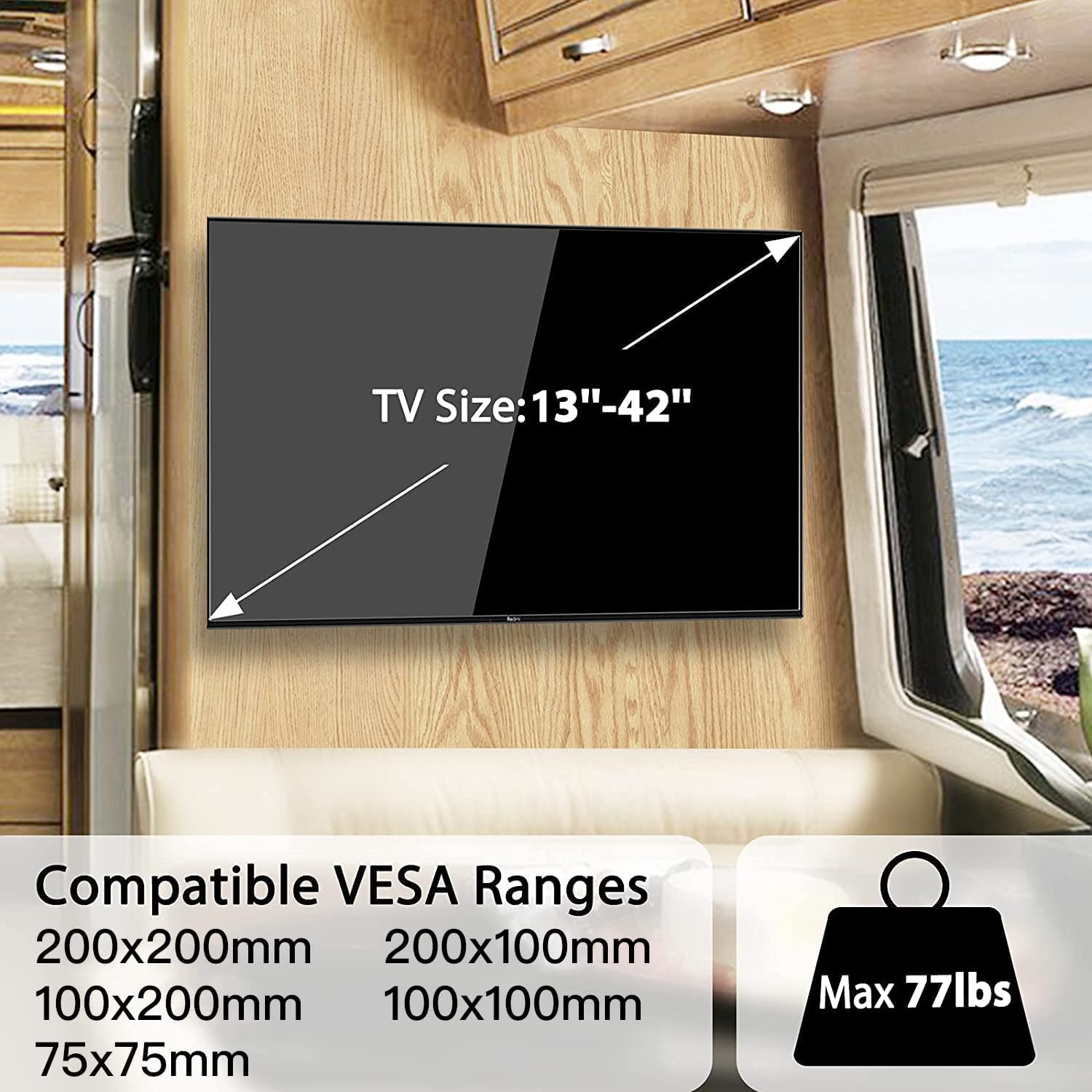

VESA Range | 75x75mm, 100x100mm, 100x200mm, 200x100mm, 200x200mm |
Wall Type | Single Wood Studs, Concrete and Block Walls |
Product Information | |
Swivel | +/-90° |
Tilt | +5°/-15° |
Profile | 2.5" |
Extension | 15.46" |
Level | +/-3° |
Wall Plate Dimensions | 11.81" x 7.48" |
Package Weight | 7.83 lbs |
Package Dimensions | 13.23" x 10.04" x 2.68" |
