Fits TVs
37" to 75"
VESA Range
200x100mm to 600x400mm
Extension
16"
Tilt +5°/-15°
Swivel +45°/-45°
Weight Capacity
100 lbs
1. PSLF10 full-motion design allows you to adjust the angle of your TV based on your viewing position in the room.

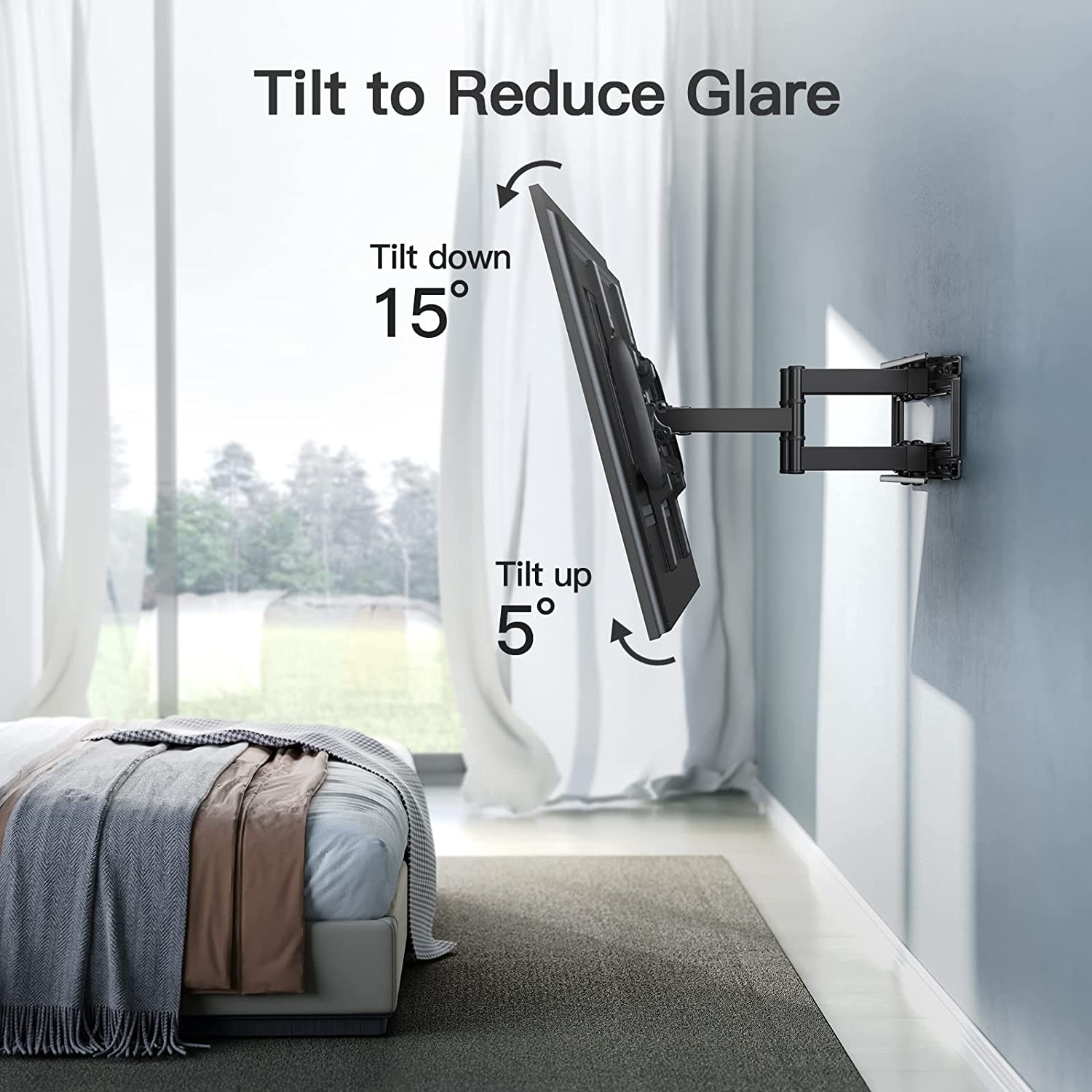

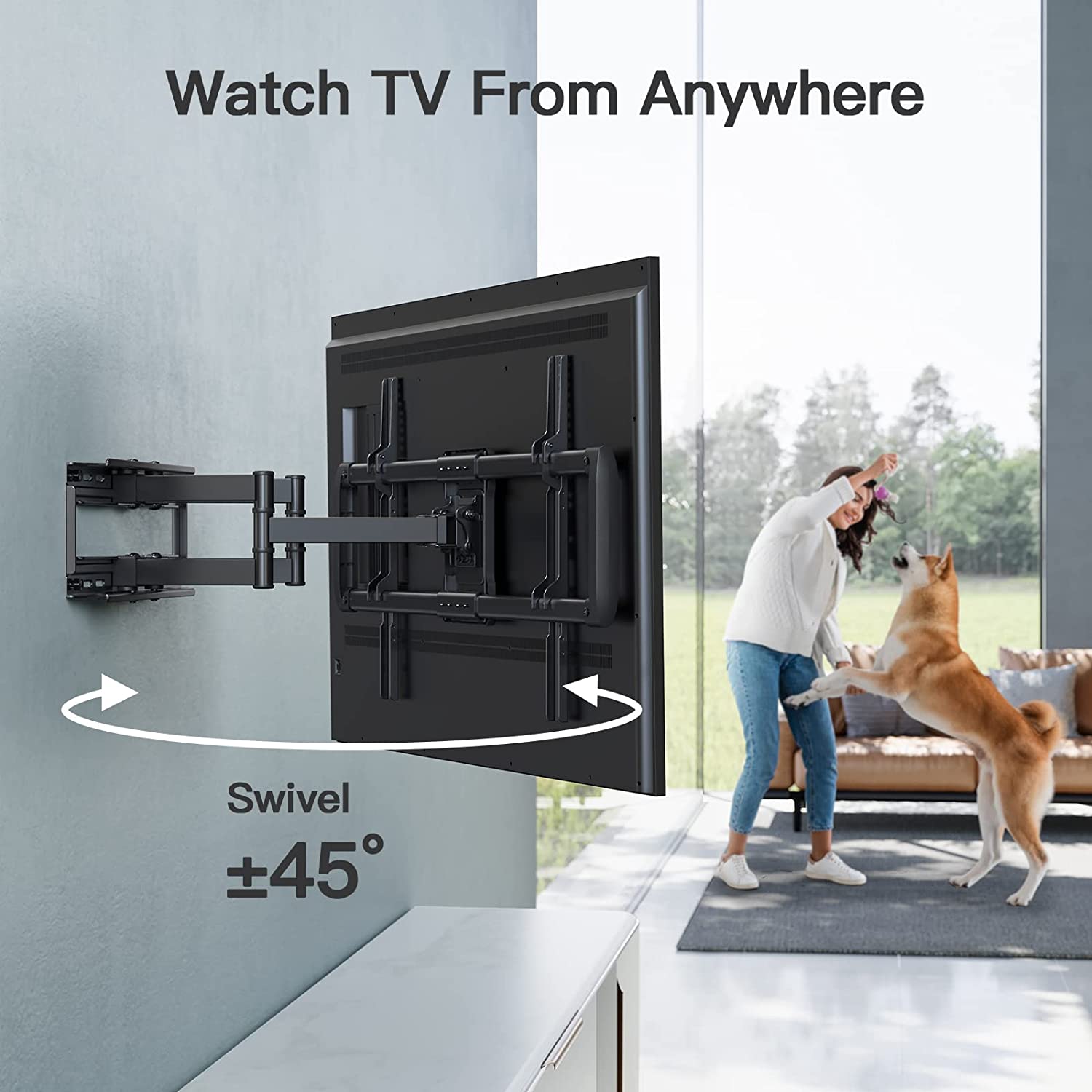

2. Features +5°/-15° tilt, up to +45°/-45° swivel (depending on TV size), and +/-3° leveling after installation for optimum viewing.

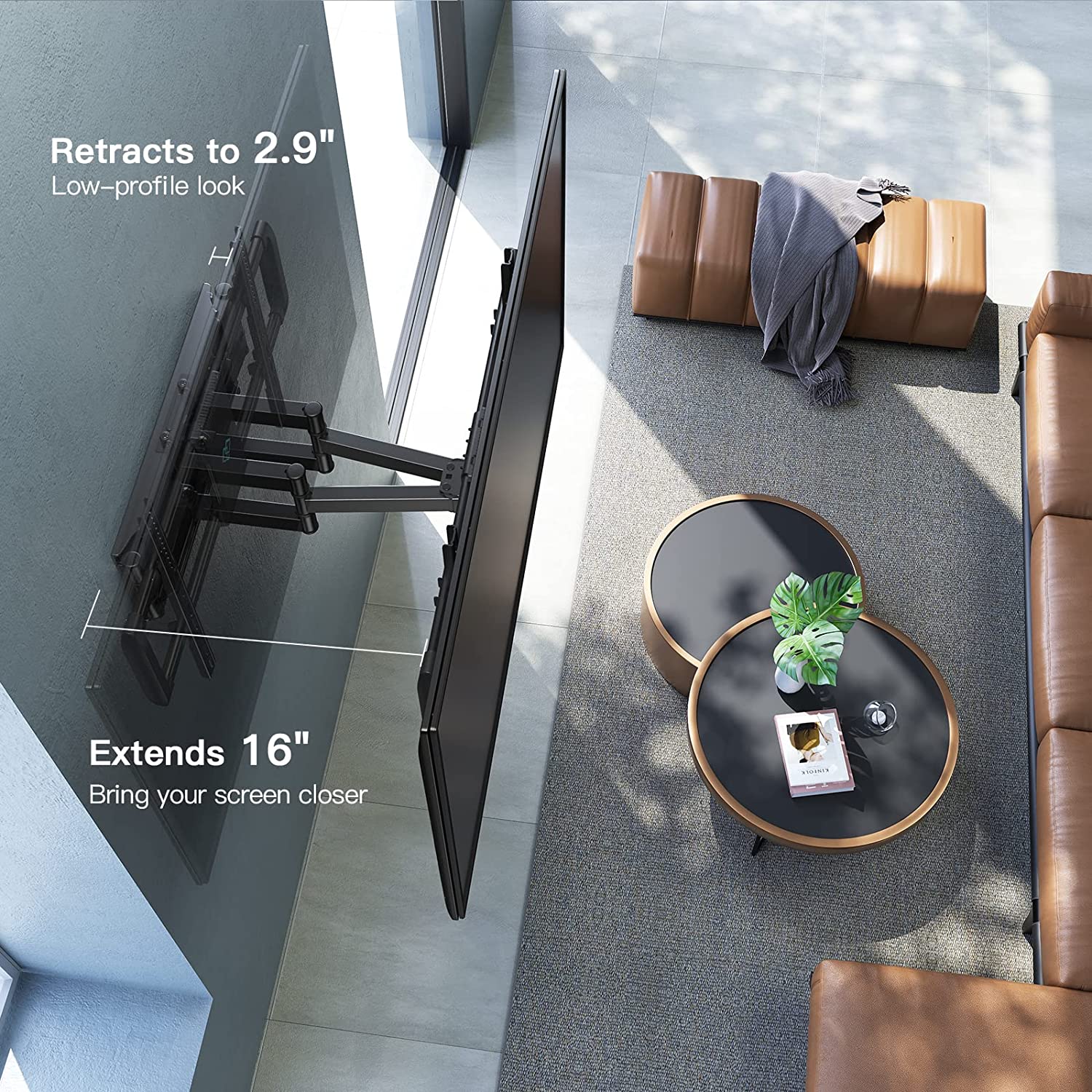

3. Extends from 2.9" to 16". Bring the action closer and get the right TV position for any seating arrangement or activity.

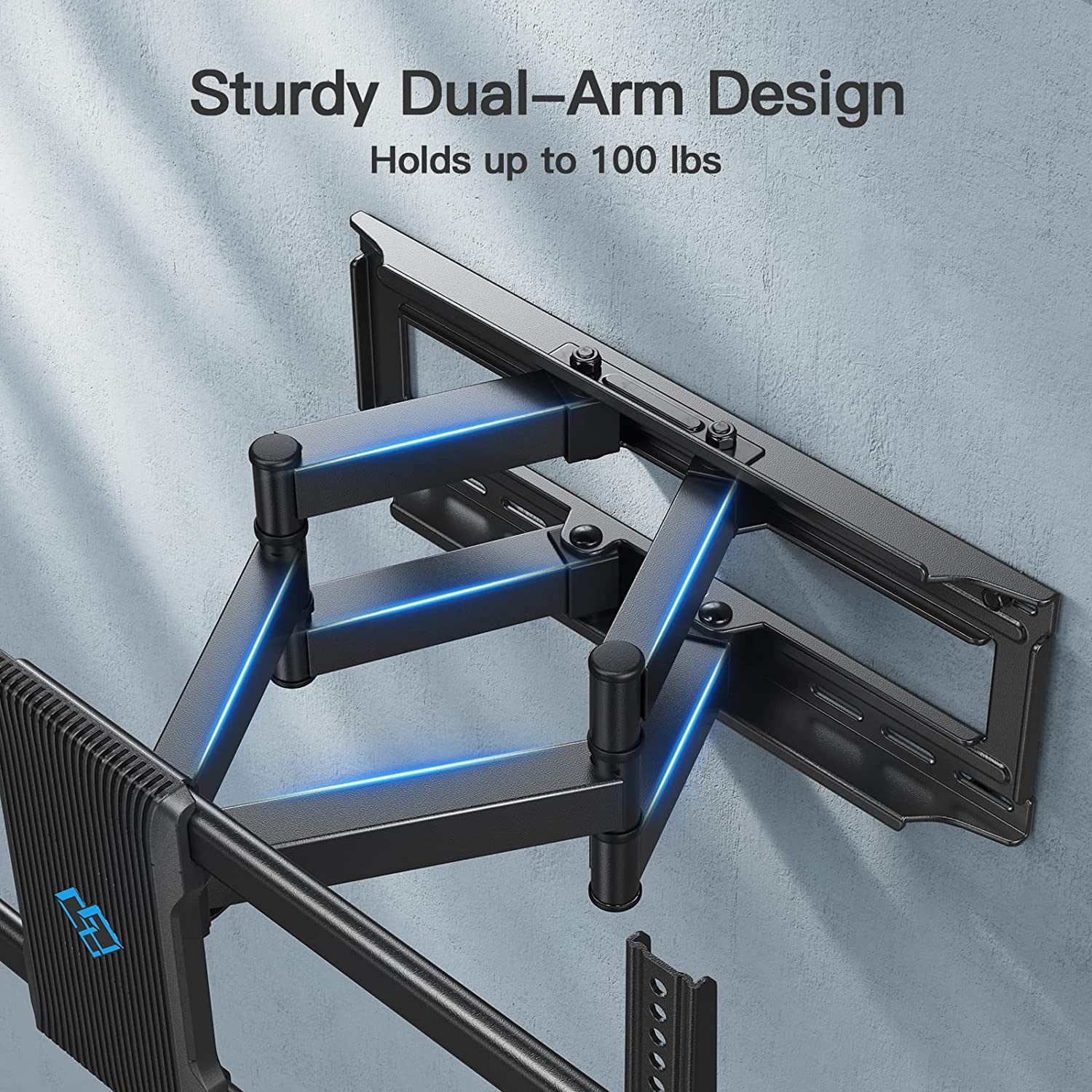

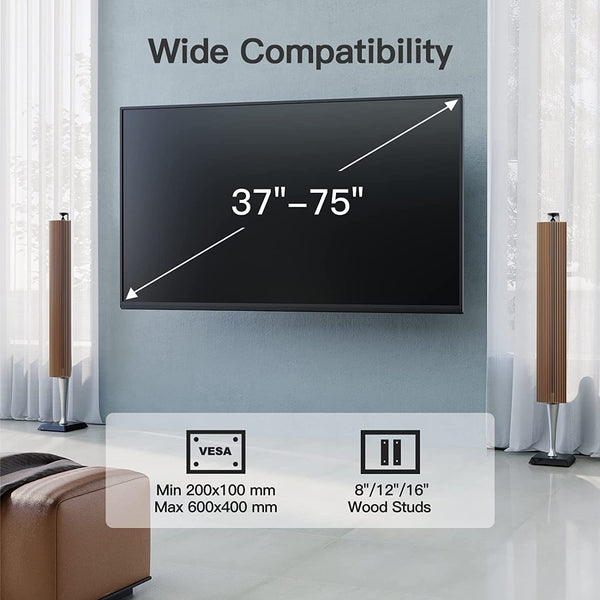

4. Fits most 37" to 75" TVs weighing up to 100 lbs with VESA patterns ranging from 200x100mm to 600x400mm.

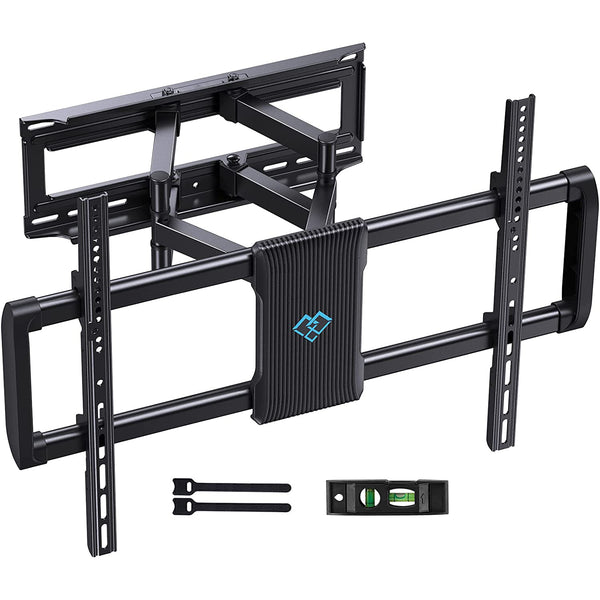

5. Includes full instruction manual and standard mounting hardware.
6. A 5-year limited warranty and professional US-based customer support.
| Product Compatibility | |
| Brand | Perlesmith |
| Model Number |
PSLF10
|
| Type | Full Motion |
| TV Size Range | 37" to 75" |
| Maximum TV Weight | 100 lbs |
| VESA Range | 200x100mm to 600x400mm |
| Wall Type | Wood Studs 8", 12", 16"on Center, Concrete and Block Walls |
| Product Information | |
| Swivel | +45°/-45° |
| Tilt | +5°/-15° |
| Profile | 2.9" |
| Extension | 16" |
| Level | +/-3° |
| Wall Plate Dimensions | 17.0" x 6.18" |
| Package Weight | 11.73 lbs |
| Package Dimensions | 17.44" x 9.96" x 3.23" |
